Double Color Cap Mold Maker China

Sino Mould is the most professional double color cap mold manufacture in China, with experience with different cap molds such as double color flip top cap molds double color medical cap…

SINO double color cap adopt hot runner system with one tip hot nozzle for each cap, which means each cap is controlled individually. And the heating elements are HOTSET brand from Germany. For each mound we will offer hot runner controller to control the hot runner system temperature, which is specially designed for each mold. And we have Mold –flow analysis for injection system simulation to make sure balance flowing.

For the double color cap molds, we mainly adopts S136 stainless steel imported for core and cavity, and for sleeve and other some other critical movable parts, SKD61 is used, for the mould base we usually adopt 1.2311 to make sure long mold life under high speed running.

double color cap moulds

For the cooling system of double color cap molds, each cavity have indepedent cooling system, to make sure the best cooling effect, which also make it very easy for maintenance in future.

Each cavity is inserted independently also, and all the cavities are interchangeable. If any cavity is damaged, they could easily replace the damaged parts with the spare parts. And only need to change the inserts, no need to change the complete core and cavity.

For more details of double color cap moulds, welcome to contact us!

mould@cnmould.com
whatsapp/wechat 008615858685625

PET Preform Mould Supplier China

In China, there are few famous PET preform moulds suppliers,such as Huayan, Huiyuan and SINO…for making PET preform moulds for PCO neck, CSD neck and PET jar preform molds…These company are similar quality.

Most of these companies will choose hot runner valve gate for the preform molds, which is controlled pneumatically and there will be no tail on the preform, which save more labor cost. And the performance is more stable also with valve gate injection system. It is also the best choice for fast cycle time.

PET preform moulds suppliers

And the 2nd common advantage for these three companies is that they all make the hot runner by themselves for PET preform moulds, which is not common in China. By making hot runner by themselves, they could have better control of hot runner quality and price also. But to make good and stable hot runner, high mentality and precise equipment are required. Thus all of these three companies have huge investment on the tooling equipment.

Besides these, different from the other PET preform molds supplier, SINO MOULD also make cap molds, which will be very convenient to customers for one stop purchase. And besides molds, we could also offer high quality injection machine, which is necessary for starting a new production. We are specialized at offering turnkey solution for our customers. And we have experienced engineer and service center especially for those who are starting new production line from factory layout, consultant service and installation, commissioning, training…

For more details, welcome to contact the leading PET Preform mould supplier in China-SINO MOULD.

mould@sinomould.com
sinomould-13@hotmail.com
whatsapp/wechat 008615858685625

5 Gallon Cap Mould Maker

SINO MOULD, the best cap moulds maker in China, have accumulated rich experience in making 5 gallon cap moulds for customers from Spain, Australia, America, South Africa…

SINO is professional in making multi-cavity solution for 5 gallon cap moulds from 4cavity to 48cavity, among which 16cavity, 24cavity and 32cavity are the most popular models. Usually for 5 gallon cap, LDPE material is used. LDPE have good flexibility but low MFI. Usually we will suggest using hot runner point gate or shutting off valve gate for 5 gallon moulds with Germany heating elements.

5 gallon cap moulds

For the multi-cavity mould, the most important thing is the precise dimension controller for the moulds to make sure the entire cavity will work perfectly. In SINO we have advanced equipment from Italy, German, Japan, and Sweden to make sure the precise tooling. And to make it easy for maintenance, the entire cavity dimension is strictly controlled to make sure each cavity is interchangeable. And usually SINO will offer certain qty of spare parts with the moulds. If any cavity damaged during production, they could replace it by spare parts.

Besides 5 gallon moulds, we also have machine company –Dakumar injection machine, offering high quality plastic servo motor injection machine for making 5 gallon caps. So we are not only offering moulds, but also turnkey solution for cap production line. And we have one team of experienced engineer who could help the customer to start the machine.

For more details about 5 gallon cap mould or machine, pls contact us!
mould@sinomould.com
whatsapp/wechat 008615858685625

Plastic Cap Mould Maker

Sino is the best cap mould maker in China, with rich experience in making various kind of cap mould, such as flip top cap moulds, sprayer cap mould, 5 gallon cap mould, water cap moulds, shampoo cap mould, washing liquid cap moulds…

plastic top cap mould

As the leader of plastic cap moulds, we have the most advanced equipment such as DMG from Germany, Fidia from Italy, Mazak from Japan… For cap moulds, usually people will choose multi-cavity solution, so it is very important to control the dimension of parts to make sure each cavity will be interchangeable, which will make it easy for maintenance. So SINO invest a lot on the equipment. For all the parts, we have drawing in achieve, and if ou need the any spare parts, we could use the ready drawing to make new parts for fast response. For the cap moulds, usually we will adopt hot runner with Germany heaters to make sure stable performance and good injection effect.

plastic cap moulds

We have supplied cap moulds to countries like Spain, Italy, Russia, Chile, Argentina… with strong R&D design department and experienced technician team. We could help improve product design, offer consultant service for new production line, responsible for mould installation and commissioning…

Welcome to contact us if you need cap moulds.
Whatsapp  008615858685625
E-mail  mould@sinomould.com

24cavity PET Preform Production Line Maker

As a leading maker of 24cavity PET preform production line, we can offer you best molding solution. Because we have been accumulated rich experience in making PET preform moulds and PET injection machine over 20years in China. Offering these production line for many customers from different countries, like Chile, Spain, Venezuela, South Africa, Mexico, …

 PET Preform Production Line

How to make a perfect solution line for our customer? Let me show you example, 24cavity PET Preform Production Line is for our customer from Chile. Hope it will help you.

For 24cavity 32.5g PET preform mould, the cycle time is rough 25-30s.we use S136 stainless steel for cav/cor parts; 2311 for mould base. With optimized cooling system and well-design, the preform molding line could run efficiency.

For PET injection machine, we choose our brand dakumar 250T PET servo motor injection machine, which can save energy 20%-70% . (The mould needs injection weight around 1050g, and our 250T PET injection machine injection weight 1160g.It can meet mould that needs injection weight. The electricity consumption of machine will be around 15kw.) These machines have features, which is designed for PET preform moulds with European standard high precession controlling system, large injection unit, bigger servo motor and strong screw to ensure fast cycle time and high coordinating with the PET preform moulds.

For 24cavity 32.5g PET preform production line, it need auto-loader STL-450, dryer SHD-400KG, PET dehumidifier-400, all in one(optional), chiller SC-15WCl, mixer SHS-150, water town, air compressor and air dryer and air tank and air filter (high pressure air stock and clean), robot to pick products and make products cool down,...

If you want to be boss and have own factory of PET preform production line, pls don’t hesitate to contact me. We can help you achieve this dream from a to z.

Email: sino@sinogroupe.com

Mobile/Whatsapp: 0086 15858685625

Preform & Cap Mould-SINOMOULD/DAKUMAR

I created this video with the YouTube Slideshow Creator (https://www.youtube.com/upload)

It is for our 72 cavity preform and cap production, which designed by Sino Mould and DAKUMAR MACHINE, our preform and cap mold with HASKY quality but much more competitive price.

Interested to buy our molds and machines, email to machine@dakumar.com or whatsapp to 0086 15257607361 for more information.

Joyce from Sino Mould/DAKUMAR

5 Gallon Bottle Production Line

SINO offers 5 gallon bottle production line and 5 gallon preform injection & bottle blowing molding line with turnkey project service. We offer full support from equipment such as 5 gallon preform moulds, 5 gallon preform injection machine& auxiliary equipment and 5 gallon bottle blowing moulds, 20L bottle blowing machine and accessory…

There are two ways to make 5 gallon bottle: by injection & blowing and by extrusion. Here we will introduce the first way. Compared the 2^nd way, 5 gallon bottle made by injection& blowing looks more beautiful, with better surface finish, uniform neck size and standard…which is very popular in the market. The 5 gallon bottle is made by 2 steps, first step is make preform and second step to blow the preform to mineral water bottle.

To make preform, you need equipment as below:

PET preform injection molding unit

1.      5 gallon preform moulds, SINO offers different cavity number for 5 gallon preform, such as 1 cavity, 2 cavity and 4 cavity to meet different output requirement

2.      PET injection machine. The preform is made by PET injection machine and moulds. Sino offers different size of injection machine for different moulds such as 450T, 650T. And there is also standard type and servo motor type for injection machine.

3.      Besides moulds and machine, you also need some auxiliary equipment, such as loader for feeding the raw material, dryer and dehumidifier to dry the material, chiller to cooling the moulds and machine…

4.      Robot to pick the preform upon client request so there is no need hire employee

Blowing molding machine & moulds. In this step, you will blow the preform to bottle with blowing moulds and machine. There are semi-automatic blowing and fully automatic blowing molding machine for different output requirement.

For who start new business, it is will be very difficult for you to choose moulds, machine and negotiating with different supplier. The good news is that SINO could offer all of the equipment mentioned above and will be responsible for all the equipment provide by us.

For more details about 5 gallon bottle prouduction line and machine, welcome to contact us!

mould@sinomould.com

whatsapp 008615858685625

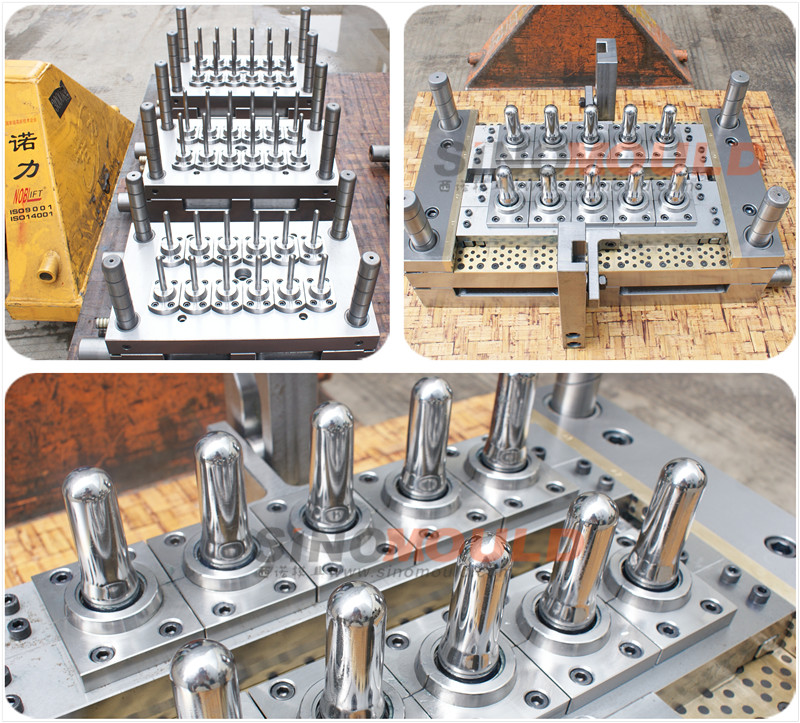

PET Preform Mould Maker & Supplier

As a professional PET preform mould makers in China, SINO-PK Company offer you preform mould from single to 144 cavities with high quality and reasonable price.

 PET Preform Mould Maker

Show you PET preform mould features:

(1)Material:

Cavity & Core steel: S136 stainless steel made in Sweden, ASSAB. It has fantastic polish, excellent hardness HRC 48-52 and anti-rust to acquire high-ranking precision and superior quality.

Mould base steel: DIN 1.2311 with precision grinding machine with each plate thickness 0.015mm for a plate size 500*500*40mm with HRC 32.

Mould spare parts steel: DIN 1.2344 IN D-M-E metric dimension standard; all the moving area was inserted with durable parts which is interchangeable.

Screw neck slide piece inserted with pre-hardened DIN 1.2083 with tempered HRC 45.

(2) Hot runner system

SINO-PK PET preform mould usually adopt Anole hot runner with special design to achieve efficient production

(3) Valve gate system

 Preform Mould

SINO-PK PET preform mould adopt valve gate to control the injection molding hole opening & closing on each cavity. No tail, so you don’t need to cut the tail by hands, saving labor cost; be easy to material flowing; make surface more beautiful; …

(4) Self-locked technical

Each cavity is self-locked, one cavity got problem but would no effect other cavities, and you can change or replace the broken one. It’s easy for customer to operate.

(5) Long mould warranty time

Our preform mould warranty time is 5 million shots, the quality guarantee time is 2 times longer than most of PET preform mould makers

 (6)Services

All the moulds will be tested and run smoothly before delivery, using our own brand Dakumar Injection Machine; Offering full set of spare parts, like core, cavity, thread, thermocouple, heater,…; Sending our experience engineer to do the preform mould installation and commissioning work, then training customer how to operate.

If you are looking for top quality PET Preform Mould Maker in China, pls don’t hesitate to contact with us. We convince that you will find high cost performance PET Preform Moulds in SINO.

Sara

Email: sino1507@sinomould.com

Whatsapp/wechat/mobile: +86 15215806623
